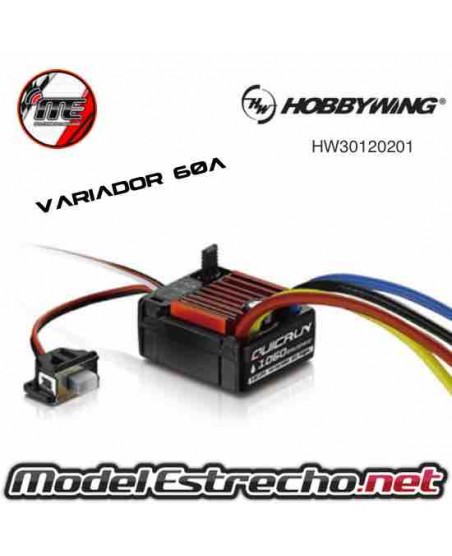

HOBBYWING QUICRUN 1060 60A. BRUSHED ESC 1:10 Ref: HW30120201

HOBBYWING QUICRUN 1060 60A. BRUSHED ESC 1:10

HOBBYWING QUICRUN 1060 60A. BRUSHED ESC 1:10

Ref: HW30120201

MAS INFORMACION

45,00 €
Impuestos incluidos
Cantidad
Disponible en nuestra tienda

HOBBYWING QUICRUN 1060 60A. BRUSHED ESC 1:10

Ref: HW30120201

MAS INFORMACION

Specifications

Product Name

QuicRun WP 1060 Brushed

Product Number

30120200

Type

Scale

1/10th

Brushed/Brushless

Brushed

Sensored/Sensorless

-

Waterproof

WP

Specifications

Cont./Peak Current

60A/360A

Input

2-3S LiPo/6-9 Cells NiMH

BEC Output

Switch Mode:6V/3A

Wires & Connectors

Input Wires

Red-16AWG-100mm*1/Black-16AWG-100mm*1

Output Wires

B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1

Input Connectors

Big-sized TAMIYA Connector

Output Connecotors

4.0 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

No

Voltage Range

No

Powered by

No

ESC Programing via

SET Button on ESC

Not Supported

LED Program Box

Not Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

Program Port

Jumper Cap

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

36.5x32.0x18.0mm

Weight

39g

Applications

Motors

Brushed Motors

Vehicles

1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

KV Rating/T Count

2S LiPo: T≥12T
3S LiPo: T≥18T
(540/550 Size Motors)

Programmable Items


Installation & Connection


1060

HOBBYWING 1060

HW30120201

HW30120201
