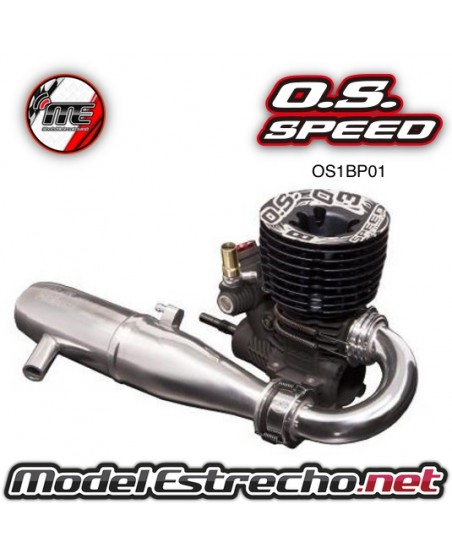

COMBO MOTOR OS SPPED B2103 TIPO R MAS ESCAPE T2100SC Ref: OS1BP01

COMBO MOTOR OS SPEED B2103 TIPO R MAS ESCAPE T2100SC

COMBO MOTOR OS SPEED B2103 TIPO R MAS ESCAPE T2100SC

Ref: OS1BP01

529,00 €
499,00 € Save 30,00 €
Impuestos incluidos
Cantidad
BAJO PEDIDO 2 DIAS EN LLEGAR

COMBO MOTOR OS SPEED B2103 TIPO R MAS ESCAPE T2100SC

INFORMACIÓN DEL PRODUCTO:

Éste es el Motor OS Speed B2103 Type R con el escape OS T2100SC.

El Motor OS Speed B2103 Type R es un motor de 5 transfers y carrera larga que ofrece la máxima potencia con un alto par a medias-bajas revoluciones. El cárter, la tapa del cárter y el carburador han sido especialmente diseñados para los Speed B2103. El cigüeñal tiene el tratamiento DLC y está equilibrado con dos casquillos de tungsteno que aumenta la suavidad de inercia rotacional y mejora su equilibrio. El B2103 Type R tiene las mismas características que el Type S a excepción de la culata que en el Type S es baja y en el Type R es estándar y la camisa es de 5 transfers en lugar de 3. Dispone de una junta tórica entre la culata y la cámara de combustión para reducir las vibraciones y proteger el interior del motor gracias a una mejor estanqueidad. El nuevo carburador 22D garantiza una mejor respuesta y aceleración más suave.

 MANUAL Y DESPIECE


Características:

• Este motor de 5 transfers y carrera larga ofrece la máxima potencia con un alto par a medias-bajas revoluciones.
• El cárter, la tapa del cárter y el carburador han sido especialmente diseñados para los Speed B2103.
• Los recambios del Type R son los mismos que el Type S.
• Culata estándar.
• El cigüeñal tiene el tratamiento DLC y está equilibrado con dos casquillos de tungsteno que aumenta la suavidad de inercia rotacional y mejora su equilibrio.
• El pistón y cilindro de 5 transfers ha sido diseñado especialmente para este motor.
• Dispone de una junta tórica entre la culata y la cámara de combustión para reducir las vibraciones y proteger el interior del motor.
• El nuevo carburador 22D garantiza una mejor respuesta y aceleración más suave.
• Incluye escape OS T2100SC.

Especificaciones técnicas:

• Cilindrada: 3.49cc
• Bore: 16.27mm
• Stroke: 16.80mm
• RPM: 4000-42000 rpm
• Max output: 2.64hp/34000 rpm
• Peso: 354gr
• Escape recomendado: T2100SC
• Camisa: 5 transfers

We are proudly introducing our new OS Speed B2103 Type-R and Type-S 3.5cc buggy engines, which not only have been designed newly, but also modified technically for improving their performance over excellent results at past numerous competitions. For corresponding driver’s preference also the course layout, two types B2103 Type-R and Type-S with different characteristics are in lineup. Both of them are long stroke engines φ16.27 mm x 16.80 mm. The most suitable and featured crankcase designed for buggy engine has been engraved with OS SPEED log as you can see in the pic, and the engine utilized a cooling head for the best possible cooling in high ambient temperatures. More than that, both engines come with a rear ceramic bearing and the traditional OS techniques DLC-coated crankshaft coming with tungsten balanced. For enhancing vibration reduction and preventing dust, the inner head also was adopted silicon O-ring. Both engines models are purchased available as engine only or including the T-2100SC exhaust and 85mm M2004SC manifold set.
O.S. SPEED B2103 TYPE-R

Engine only Code No.1BP00:
Combo Set(T-2100SC+M2004SC)
Code No.1BP01
B2103_R_tantai.jpgAs for the Type-R engine, the long-stroke 5-plus-3-port power plant was developed for medium to high speed tracks and it features a new crankcase, end cap and 22E carburetor adopted.

O.S. SPEED B2103 TYPE-S

Engine only Code No.1BN00:
Combo Set(T-2100SC+M2004SC)
Code No.1BN01
B2103_s_tantai.jpgAs for the Type-S engine, the 3—plus-1-port long-stroke power plant offers increased torque in the low to mid RPM range while being easy on fuel consumption. The engine utilises the same updated crankcase, end cap and DLC-coated crankshaft, but comes with a more efficient 22D carburettor for smoother throttle response and greater mileage. The engine sports a low-profile cooling head for an overall lower centre of gravity.



Specification

Displacement : 3.49cc / 0.213 cu.in.
Bore : 16.27mm/0.641in.
Stroke : 16.80mm/0.661in.
Output: 2.68ps/2.64hp/34,000r.p.m
practical rpm range: 4,000-42,000 r.p.m.
weight : 347g / 12.24oz (TYPE-S) 352g/12.42oz.(TYPE-R)

promotion video(You Tube )

Features

  • Crankcase


    newly designed crankcase, on which OS SPEED logo is engraved, has enough surface area for effective heat dissipation.

  • Cylinder liner


    type R 5-ports liner which performs excellent at medium and high speed range. Type S 3– ports liner performs well at medium and low speed range

  • Outer head


    both of them are newly designed head, type R has a standard round head, type S has high vertical finned low-profile cooling head for improving the car drivability with low gravity.

  • Inner head


    For reducing vibration and preventing dust, the inner head is adopted silicon O-ring.

  • Carburetor


    type R adopts the 22E carburetor which emphasizes high power; type S features the 22D carburetor which emphasizes quick response and smooth acceleration.

  • Ball link-


    both types adopt a newly designed ball link which can change the position of fixing screw for easy access.


  • Crankshaft


    DLC Coated Crankshaft with Tungsten weights and potted with silicone.

  • Reducer


    emphasized the inhalation effect, the 6.0mm II/6.5mm II are designed for both types.

  • Combo set


    the new pipe T-2100 (EFRA2155) is included in combo set. 。

Photo gallery

  • B2103s_top980.jpg

  • B2103s_front.jpg

  • B2103s_980rear.jpg

  • B2103s_side.jpg

  • B2103s_side2.jpg

  • B2103R_top980.jpg

  • B2103R_front.jpg

  • B2103r_rear2.jpg

  • B2103R_side.jpg

  • B2103R_side2.jpg

OS1BP01
