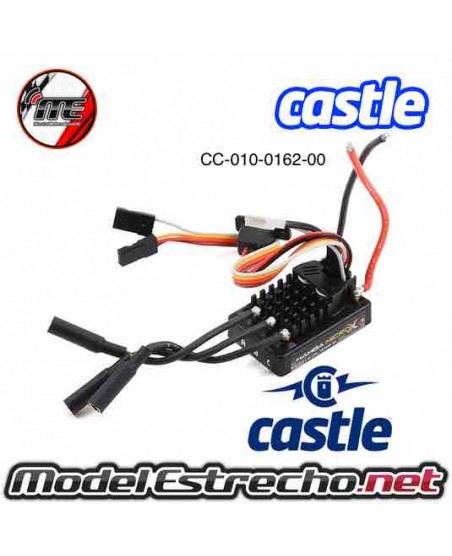

copy of COMBO CASTLE MAMBA MICRO X WATERPROOF 1/18 5300 KV

Castle Creations' Mamba Micro X puts Extreme Power, Extreme Control and Extreme Fun in a Relatively small footprint. This package combine the Micro X and a Castle "mighty-mite" 0808 - 5300Kv brushless engine to create the ultimate brushless power system upgrade for Mini-LST, Half-Eight, Mini-Quake and vehicles Spyder. Small enough for most 1: 18th scale vehicles, the waterproof Micro X is suitable for 2WD or 4WD vehicles over 1.5 lbs and up to 2.25 lbs.

Following Suit with the other ESCs Mamba X Series, the Mamba Micro X features even more extreme performance and capabilities than the model it Replaces. digital The Micro X Receives a heavy-duty BEC (battery eliminator circuit) to handle today's high-draw servos and Present features a programmable Auxiliary Wire (AUX) That Allows the user to make "on-the-go" Adjustments to Several settings, Control: such as torque and max throttle, Directly from a compliant transmitter. This Allows you to fine-tune the performance of the Micro X to meet changing driving conditions.

sensor Support
The Micro X features the Ability sensored brushless motors to run (with the purchase of an optional sensor Harness). Now, a whole new group of R / C enthusiasts will be reliable to enjoy the power, control, and fun of a Castle power system in your vehicle. The Micro X is running on Cable of 3S LiPo 2S up to power with a highly-efficient heat sink design to keep you running cool, even When pushing it hard in mud, sand and other heavy power applications.

Castle Link: Industry-Leading Software Functions and Tuning
Small but mighty, the Micro X can be "custom tuned" via Castle's industry-leading Castle Link software. The Micro X includes a coupon for a free Castle Link USB device. This Allows access to the full suite of adjustable settings programming So THAT enthusiasts can tune and tweak the performance of Their Micro X-equipped vehicle to Their preference.

Castle Link adjustable settings for the Micro X include:

    Throttle
    Braking Curve
    Drag Brake
    Auto LiPo Cutoff
    Punch Control
    Reverse Type
    engine Type


Specifications:

    ESC:
        Input Voltage Range: MIN: 2S LiPo; MAX: 3S LiPo 12.6V
        BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
        Operating Environment: Waterproof * design Allows for use in any environment Nearly. (See Product Use Statements)
        Brake: Proportional
        Reversible: Yes - with lockout
        On / Off Switch: Yes, waterproof
        ESC Cooling Fan: No
        Size: 1.61 "x 0.75 in" in x 1.10 "inches (4.1 x 1.9 x 2.8 cm)
        Weight (w / o battery connector soldered to ESC): 1.20 oz (34.01 g)
        Application Guidelines: 1: 18th scale RC hobby vehicles weighing up to 2.25lbs.
        Items Needed for Operation: Battery Connector required, 4mm Castle Connectors are recommended.
    Engine:
        Kv: 4100
        Motor Size: 1.5 "x .79"
        Shaft: .08 "(2mm)
        Weight: 1.8oz (50g)
        Mounting Hole: 1/2 ", 14mm, 5/8"
        Maximum Operating Temperature: 180 F (82 C)
        Maximum Input Voltage: 3S LiPo (2S LiPo max for 8200kv)
        Connectors: 3.5mm gold connectors (female connectors included)

Product Use Statements:

    Not Intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then a fully dry unit.
    Applying voltages higher than 12.6 volts will cause irreparable damage to your controller, voiding your warranty.
    Recommended battery capacity for 1: 18th scale vehicles is 1500mAh. Castle Recommends using 30C or higher continuous discharge LiPo batteries (batteries or high quality 25C: such as Traxxas® Power Cell).
    The Mamba Micro X has 3.5mm bullet connectors on the engine and the battery input wires are bare wires. You must add the connector of your choice to the battery leads. Castle Recommends to high current connector rated for at Least 40 amps.
